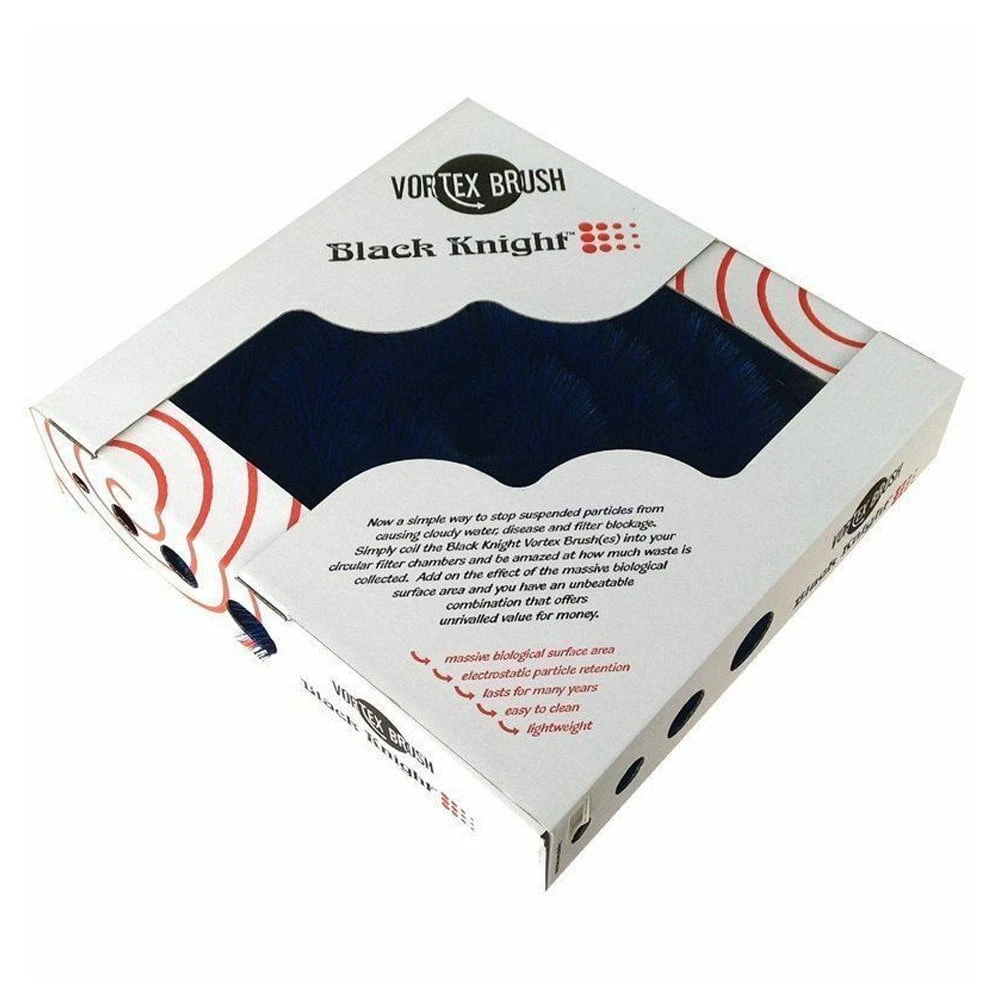

Vortex Brushes

• Specially designed brush for vortex filters
• More than one brush can be added into a vortex
• Electrostatic particle retention
• Lightweight & easy to clean
• Long lasting
• Dimensions (L x Ø): 260cm x 10cm

Black Knight Vortex Brushes provide a simple way to stop suspended particles from causing cloudy water, disease and filter blockage. Simply coil the Black knight Vortex Brush(es) into your circular filter chambers and be amazed at how much waste is collected. Add on the effect of the massive biological surface area and you have an unbeatable combination that offers unrivalled value for money.

Why Do I Need?
Vortex chambers are good for settling out heavy waste but much less efficient with the lightweight particles. Have you noticed that even though you get a lot of waste in the bottom of your vortex, you still find that the subsequent chambers get very dirty too. This is the very fine particles that do not have time to settle in the vortex and so they get drawn through the transfer port into the next chamber.

How Do They Work?
Black Knight brushes work in three ways. First, they physically trap the large particles that cannot pass through the close weave of the interlocking filaments. Secondly, the filaments have a static charge that ‘grabs’ any small particles that are flowing by. This charge holds onto the waste until you do your routine cleaning. Thirdly, after you have been using the brushes for a few weeks, the massive surface area of the brushes becomes home to millions of beneficial nitrifying bacteria that will help to purify your water biologically.

How To Use
Simply insert a vortex brush in the path of the flowing water and you will be amazed at how much waste is collected in a short time. If your second and subsequent chambers are already full of media then you can use either one vortex brush strategically placed around the transfer port or you can use several to build up a barrier of them above the inlet of the vortex and below the outlet (assuming that your vortex is designed in this way). This will allow the heavy waste to drop to the bottom of the chamber and then all the waste that does not settle is forced to pass through the brushes thus allowing it to be caught.

You can coil one or two vortex brushes around the outlet so that the water has to pass through the brushes.

You can create a complete barrier filling the whole cross section of the chamber. The more brushes you use, the greater the amount of waste that can be collected and also the larger the surface area for biological filtration

Vortex brushes can be used in as many chambers as you wish. It is a good idea to leave some room in the first chamber to allow for settlement but subsequent chambers can be filled with vortex or filter brushes as shown.

Maintenance
The frequency of cleaning will depend upon the size of the filter relative to the pond size and also the loading on the system i.e. the body weight of fish in the pond, how much they are eating and how much dust and plant debris is being produced.

The rule of thumb is – the more often you do your cleaning, the cleaner your pond will be. On a lightly loaded system then once every three weeks in the warm months may be sufficient but twice a week may be necessary on a heavily loaded system.

Brushes can be cleaned in-situ if you wish. Simply drain the chamber and then rinse the brushes by pouring buckets of pond water over them. Alternatively, you can take the brushes out, clean and then replace them.

You can use chlorinated tap water for cleaning them but you will temporarily reduce the biological effectiveness of the brushes with this method.
